Indmar Marine Engines service manuals, owner's manual and schematics

Title

File Size

Download Links

2005 Indmar Marine Engines GM Based Operators Manuals.pdf

2.5Mb

Download

2006 Indmar Marine Engines GM Based Operators Manuals.pdf

1.1Mb

Download

2007 Indmar Marine Engines GM Based Operators Manuals.pdf

2.3Mb

Download

2008 Indmar Marine Engines GM Based Operators Manuals.pdf

2.3Mb

Download

2009 Indmar Marine Engines GM Based Operators Manuals.pdf

2.3Mb

Download

2010 Indmar Marine Engines GM Based Operators Manuals.pdf

2.5Mb

Download

2011 Indmar Marine Engines GM Based Operators Manuals.pdf

2.5Mb

Download

2012 Indmar Marine Engines GM Based Operators Manuals.pdf

3.1Mb

Download

2014 Indmar Marine Engines GM Based Operators Manuals.pdf

3.1Mb

Download

2015 Indmar Marine Engines GM Based Operators Manuals.pdf

3.1Mb

Download

2015 Indmar Marine Engines Raptor Series 6.2L Operators Manuals.pdf

8.3Mb

Download

2016 Indmar Marine Engines Raptor Series 6.2L Operators Manuals.pdf

7.3Mb

Download

Indmar Carter Fuel Pump Maintenance (PDF).pdf

3.7Mb

Download

Indmar Compression Test Procedure (PDF).pdf

10.4kb

Download

Indmar Diagnostic Manual 2009-2010 ECM v1.2.pdf

2Mb

Download

Indmar Diagnostic Manual Version 1.2.pdf

2Mb

Download

Indmar Diagnostic Trouble Code Fault Descriptions.pdf

39.3kb

Download

Indmar Digital Oil Sensor Volts vs Pressure Chart.pdf

20.7kb

Download

Indmar Engine Oil Recommendations.pdf

2.1Mb

Download

Indmar Fuel Pressure Reference Chart - 1996-2006.pdf

14.8kb

Download

Indmar General Engine Specifications & Capacities Sheet.pdf

36.2kb

Download

Indmar Ignition Timing & Adjustments.pdf

2.2Mb

Download

Indmar Marine Engines 2018 Raptor Series 6.2L Ford Based Operator’s Manual.pdf

8.1Mb

Download

Indmar Marine Engines Catalog.pdf

5.6Mb

Download

Indmar Marine Engines J1939 Code Manual.pdf

2Mb

Download

Indmar Marine Engines Service and Diagnistic Manual - for electronic fuel injection system with MEFI 5 and 5A Controllers.pdf

14.1Mb

Download

Indmar Marine Engines Service and Diagnistic Manual - for electronic fuel injection system with MEFI 6 Controllers.pdf

2.7Mb

Download

Indmar Parts Manual .pdf

875.2kb

Download

Indmar Service Manual 302 & 351.pdf

3Mb

Download

Indmar Service Manual 5.7L Mechanical Repair Specs.pdf

2.4Mb

Download

Indmar Service Manual 6.0L LQ9 Mechanical Repair Specs.pdf

7Mb

Download

Indmar Service Manual 8.1L Mechanical Repair Specs.pdf

3.4Mb

Download

Indmar Service Manual LS7 Corvette Mechanical Repair Specs.pdf

4.6Mb

Download

Indmar Starter System Voltage Drop Test Procedure .pdf

908.3kb

Download

Malibu Fuel Delivery System Maintenance.pdf

40.8kb

Download

Oil Filter Service Bulletin - Pennzoil .pdf

75.7kb

Download

PCM Oil Pressure Switch Service.pdf

23.4kb

Download

PCM Service Quick Reference.pdf

38.4kb

Download

Remote Oil Filter Install.pdf

24.9kb

Download

Winterization - Indmar LQ9 Draining Instructions.pdf

11.3kb

Download

Winterization & Storage Procedure - Indmar 5.7L .pdf

21.2kb

Download

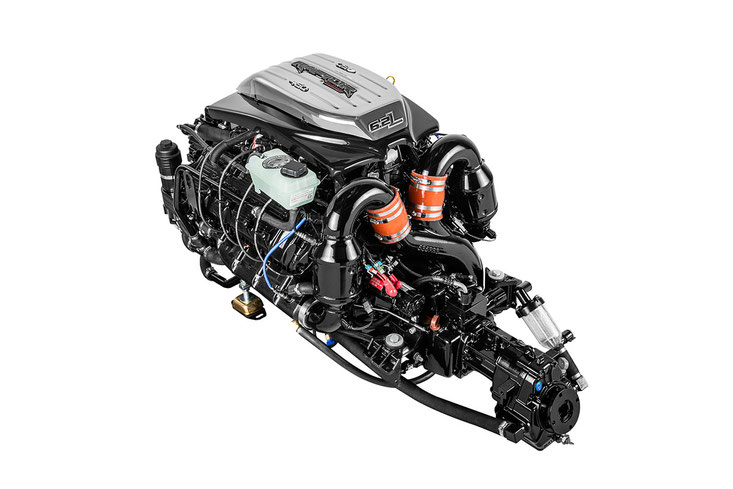

Indmar Products, Inc. produces stationary marine engines, which are used in high-speed boats for wakeboarding and water skiing, as well as in jet boats for sailing on rivers with turbulent currents. The company was founded in 1971 in Millington, Tennessee, by Dick Rowe, a US Marine Corps veteran. Indmar pickles automobile engines, that is, adapts them for use on boats. This is a complex process that involves large-scale reconstruction of all elements except the cylinder block to meet the requirements for small vessels and the regulatory requirements of the US Coast Guard.



Under the leadership of Chuck Row, son of Dick, Indmar has implemented many innovations in the shipbuilding industry and has become the largest privately owned manufacturer of stationary gasoline marine engines. For example, the company was the first to pickle Cadillac Northstar and Chevrolet LS-1 Corvette engines. Currently, the company produces various versions of the 16-valve engine of the Ford V-8 with a volume of 6.2 liters, which is used in the F-250 Super Duty truck.

Until the 1990s, all design work was done manually. Then the company began to use AutoCAD® 2D design tools, switched to Pro / ENGINEER® and Autodesk® Inventor® packages for 3D design. In 2014, Indmar's management decided to review the 3D design environment in use to simplify the exchange of data with customers and partners and streamline processes to shorten design cycles, increase productivity and accelerate production.



According to Jason Stimmel, vice president of engineering, Indmar decided to switch to the SOLIDWORKS® 3D integrated development platform. SOLIDWORKS Professional design solutions, SOLIDWORKS Premium design and analysis solutions, SOLIDWORKS Flow Simulation for Computational Fluid Dynamics (CFD) analysis, SOLIDWORKS Composer ™ for technical data exchange, and SOLIDWORKS PDM Professional for product data management have been implemented. These applications are easier to use and more affordable, and also facilitate collaboration on engine design with customers - manufacturers of small boats.



“Almost all of our customers use SOLIDWORKS solutions, like many of our suppliers,” says Stimmel. “Thanks to the switch to SOLIDWORKS, we have a consolidated platform that simplifies data exchange and customer interaction in engine design.”

Indmar Marine Engines manual pdf

The information in these manuals applies to the following engine models:



5.7L Carbureted

  • Indmar 5.7L Vortec
  • 350 Carb Jet

5.7L Electronic Fuel Injected



  • Axis AR335**
  • Indmar 5.7L MPFI
  • Indmar Assault 325
  • Malibu 5.7L LCR
  • MasterCraft 5.7L RTP-1
  • Indmar 5.7L HO*
  • Indmar Assault 350*
  • Malibu Monsoon*
  • MasterCraft MCX*



















6.0L Multi Port Fuel Injected

  • Indmar LS2*
  • Indmar L96*
  • MasterCraft LY6* / L96*
  • Malibu L96*







6.2L Multi Port Fuel Injected

  • Axis Raptor 400**
  • 383 Indmar MPI*
  • Indmar LSA
  • Malibu LS3
  • Malibu LSA
  • MasterCraft LSA











7.0L Engines

  • Malibu LS7

7.4 Liter Engines

  • Indmar 454 Carbureted

8.1L Engines

  • Indmar 8.1L Vortec MPFI
  • Malibu 8.1L Vortec MPFI
  • MasterCraft 8.1L Vortec MPFI





8.2L Engines



  • Indmar 502 Carbureted
