Tomos outboard motors: maintenance and  service manuals

Download
Tomos 4 Outboard Motor Maintenance Manual [en]
Tomos 4 Outboard Motor Maintenance Manua
Adobe Acrobat Document 35.8 MB

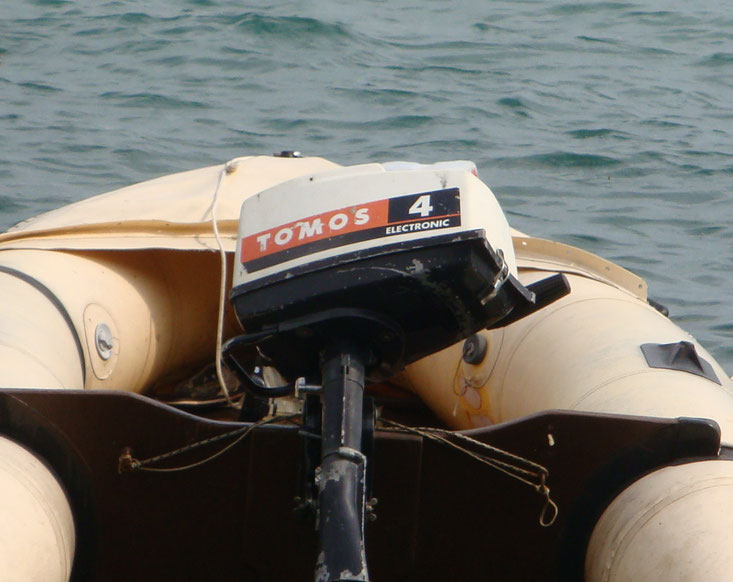

Reliable boat motor manufactured by Tomos (former Yugoslavia / now Slovenia).

- Power - 4 horsepower

- Engine displacement 59.6 cc.

- The maximum number of rpm 5800

- Maximum speed up to 18 km / h;

- Fuel consumption at full load - 1.6 liters per hour



- Engine: single-cylinder, two-stroke, blown by a fan with an exhaust hole located below the anticavitation plate;



- reversible starter;

- The head rotates 180 degrees

- There is a backing

- Water cooling exhaust;

- Two-blade screw with a diameter of 200 mm and a step of 140 mm;

- Weight - 15.5 kg;

Includes fuel tank 5 liters.
